15/20/30kw Three Phase MPPT Hybrid Solar Inverter

The 15/20/30kW Three Phase MPPT Hybrid Solar Inverter is designed to deliver exceptional performance and reliability, making it an ideal solution for modern solar energy systems.

Model:	BSE15/20/30KH3
Type:	Three Phase Hybrid Storage Inverter
Max Power:	15/20/30KW
Voltage Range:	150-800V
Warranty:	5 Years (7/10 Years Option)
Certificate:	CE,TUV

Inquiry Now

Product Introduction

The 15/20/30kW Three Phase MPPT Hybrid Solar Inverter is designed to deliver exceptional performance and reliability, making it an ideal solution for modern solar energy systems. It features Time-of-Use (TOU) optimization to maximize energy efficiency and cost savings, while its support for unbalanced loads ensures seamless operation across diverse power demands. Equipped with optional AFCI and Rapid Shutdown capabilities, it enhances safety to meet the most stringent requirements.
The inverter comes with a built-in anti-feed-in function, enabling compliance with grid regulations, and offers smart monitoring with remote firmware upgrade capabilities for effortless system management. Additionally, it supports generator integration, ensuring flexibility and uninterrupted power supply for various scenarios. Designed for both reliability and innovation, this hybrid solar inverter is the perfect choice for residential, commercial, and industrial applications.

Key Features

Support for Time-of-use Optimization

Build in Anti-feed-in Function

Configurable Operation Modes

100% unbalanced output, each phase; 200% unbalanced output, each phase (Below 10kW)

AFCI (Optional) & Rapid Shutdown Ready

Smart Monitoring & Remote Firmware Upgrade

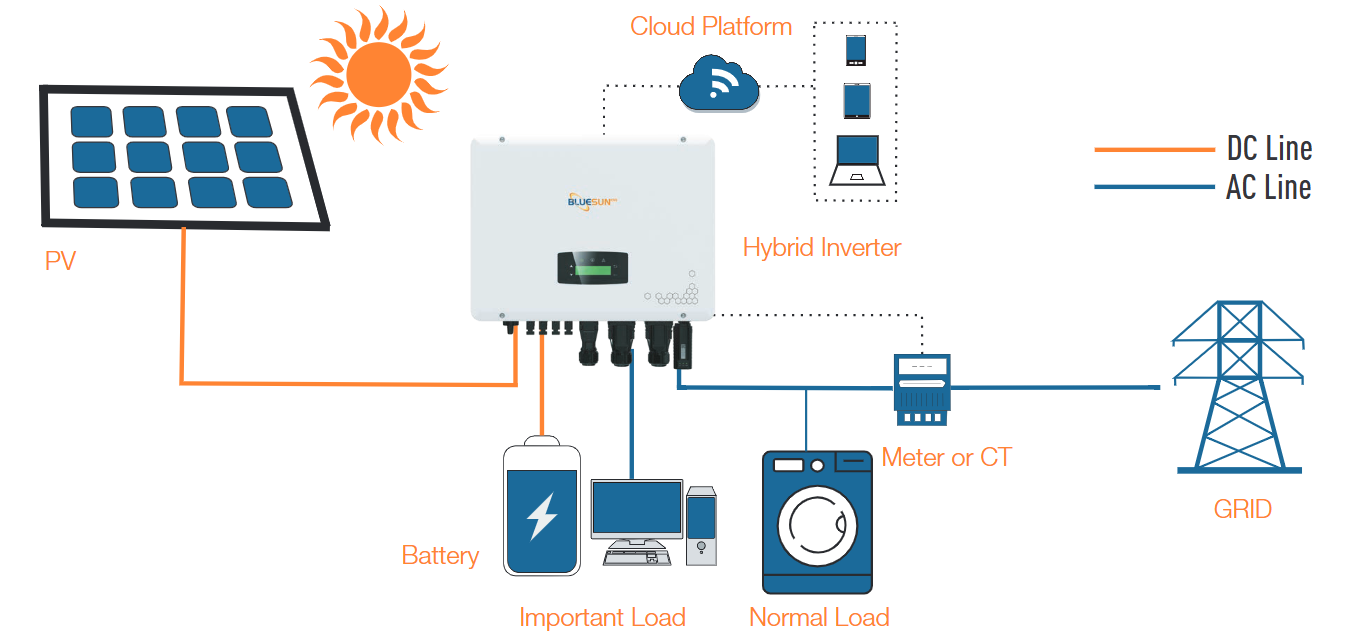

System Diagram

Basic Parameters

Model	BSE15KH3	BSE20KH3	BSE30KH3
PV Input
Max. DC Input Power (kW)	22.5	30	45
Max. PV Voltage (V)	1000
Rated DC Input Voltage (V)	620
DC Input Voltage Range (V)	150-1000
MPPT Voltage Range (V)	150-850
Full MPPT Range(V)	500-850
Start-up Voltage (V)	160
Max. DC Input Current (A)	20+32	32×2	40×2
Max. Short Current(A)	30+48	48×2	60×2
No. of MPPT Tracker / Strings	2/3	2/4	2/4
Battery Port
Battery Nominal Voltage (V)	500	500	550
Battery Voltage Range (V)	150-800
Max. Charge/Discharge Current (A)	50	50	60
Max. Charge/Discharge Power (kW)	15	20	30
Charging Curve	3 Stages
Compatible Battery Type	Li-ion / Lead-acid
AC Grid Output
Nominal AC Output Power (W)	15000	20000	30000
Max. AC Input Power(VA)	22500	30000	45000
Max. AC Output Current (A)	27	32	48
Nominal AC Voltage (V)	230/400
Nominal AC Frenquency (Hz)	50 / 60
Power Factor	1（-0.8-0.8）adjustable
Current THD (%)	<3%
AC Load Output (Back-up)
Nominal Output Power (VA)	15000	20000	30000
Nominal Output Voltage (V)	230 / 400
Nominal Output Frequency (Hz)	50 / 60
Nominal Output Current (A)	21.8	29	43.5
Peak Output Power	16500VA, 60s	22000VA, 60s	33000VA, 60s
THDV (with linear load)	<3%
Switching Time (ms)	<10
Efficiency
Europe Efficiency	97.5%	97.8%	98.1%
Max. Efficiency	98.3%	98.3%	98.5%
Battery Charge/Discharge Efficiency	98.0%
Protection
Reverse Polarity Protection	Yes
Over Current / Voltage Protection	Yes
Anti-islanding Protection	Yes
AC Short-ciruit Protection	Yes
Leakage Current Detection	Yes
Ground Fault Monitoring	Yes
Grid Monitoring	Yes
Enclosure Protect Level	IP65
General Data
Dimensions (WxHxD,mm)	558535260 mm
Weight (kg)	29kg	29kg	36kg
Topology	Transformer-less
Cooling Concept	Intelligent Fan
Relatively Humidity	0-100%
Operating Temperature Range (°C)	-25 to 60 °C
Operating Altitude (m)	< 4000
Noise Emission (dB)	< 40
Standby Consumption (W)	< 5
Display & Communication Interfaces	LCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
