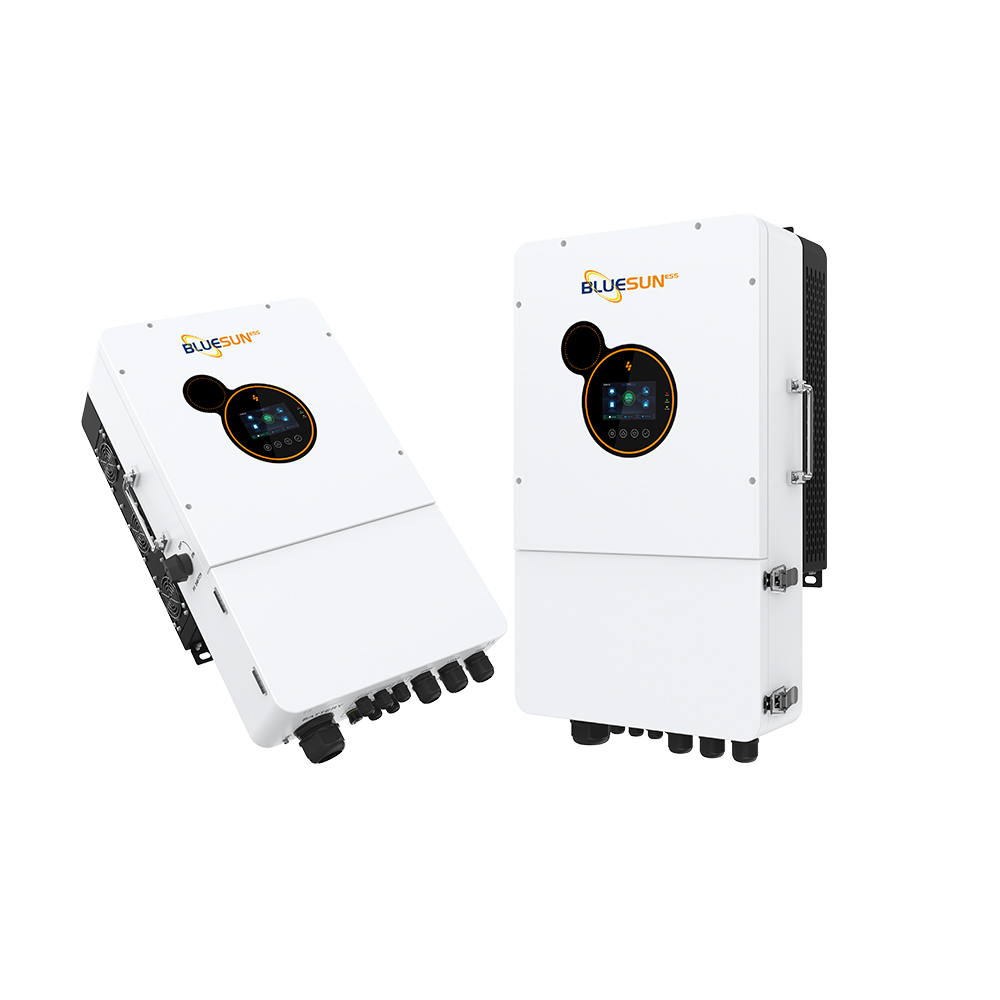

3 phase 10kw solar inverter grid tie output high-quality pure solar storage inverter IP65

    Models

BSE10KLNA

CanBe
Set

        NVERTER OUTPUT

    Rated Output Power

10,000W

    Max.Beak Powen

20,000VA

    Rated OutputVoltage

  120/240Vac,single-phase /splt-phase/three-phase(paralle)

√

    Load Capacty of Motors

6HP

    Bated AO Frequo0cy

50/60Hz

    BATTERY

    Battery yp

Lead-acid/L-on/User-defined

√

    BatedBathory Voitage

48V

    Max.PV Oharging Ourren

200A

√

    Max.Mains Charging Curren

120A

√

    Max.Aternator Chaging Current

60A

    Max.Hybrd Charging Ourrent

200A

√

    PVINPUI

    Num.of MPPT

2

    Max.PV Aray Power

5,500W+5.500W

    Max.hput Curent

25A+25A

    Max.Open-circut Voltage

550Vdc+550Vdc

    MPPT Qperating Votage Range

125~450Vdc

        MANS/GENERATOR INPUT

    hputVotage Range

90～140Vao

√

    Frequency Range

50/60Hz

    GENERA

    Num.of Paralel

1~6 units

    Dimensons

750*440*240mm  (2.46*1.44*0.79ft)

    Weight

42kg  (92.59Ib)

    Protecfon Degree

P65

    OperatingTemperatureRange

-25-60C,>45C derated

    Oooing Method

ntelligent alr-coollng

    Wananty

5years

    COMMUNCATON

    Embedded htertaces

RS485/CAN/USB /Dry contact

√

    Extemal Modulesfoptional

Wi-F/GPRS

√

    CERTIFICATION

    Sfey

EC62109-1,IEC62109-2,UL1741

    Bohs

Yes
