| Brand: | BSM48106 Unit |
| Battery Type: | LiFePO4 |
| Battery Module Capacity: | 5.42Kwh |
| Battery Module Voltage: | 51.2V |
| Cycle Life: | ＞6000 |
| Certificate: | CE/IEC/UL/UN38.3/MSDS |

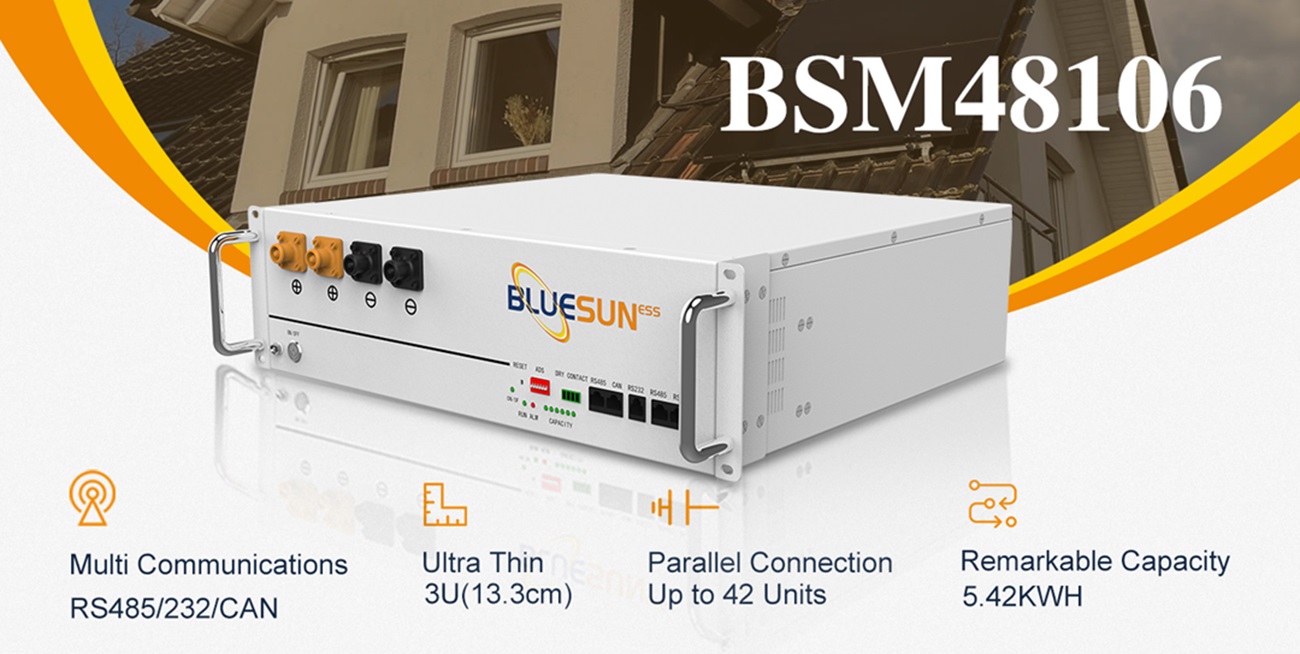

The BSM48106 lithium iron phosphate battery system is a standard battery system unit, customers canchoose a certain number of BSM48106 according to their needs, by connecting parallel to form alarger capacity battery pack, to meet the user’s long-term power supply needs. The product isespecially suitable for energy storage applications with high operating temperatures, limitedinstallation space, long power backup time and long service life.
*High Performance BMS:
Protects against over-discharge, over-charge, over-current, and abnormal temperatures, with self-management for charging/discharging and single-core balancing.
*Intelligent Design:
Integrated inspection module ensures efficient monitoring and operation.
*Flexible Configuration:
Multiple modules can be connected in series to expand capacity, power, and standby time.
*Low Maintenance:
Self-ventilation reduces system noise, while low self-discharge extends the recharging period up to 10 months during storage.
*Wide Operating Range:
Performs well in temperatures from -20℃ to +55℃ with excellent discharge efficiency.
*Compact & Lightweight:
Standard 19-inch embedded design allows easy installation and maintenance.
*No Memory Effect:
Supports shallow charging and discharging without performance degradation.

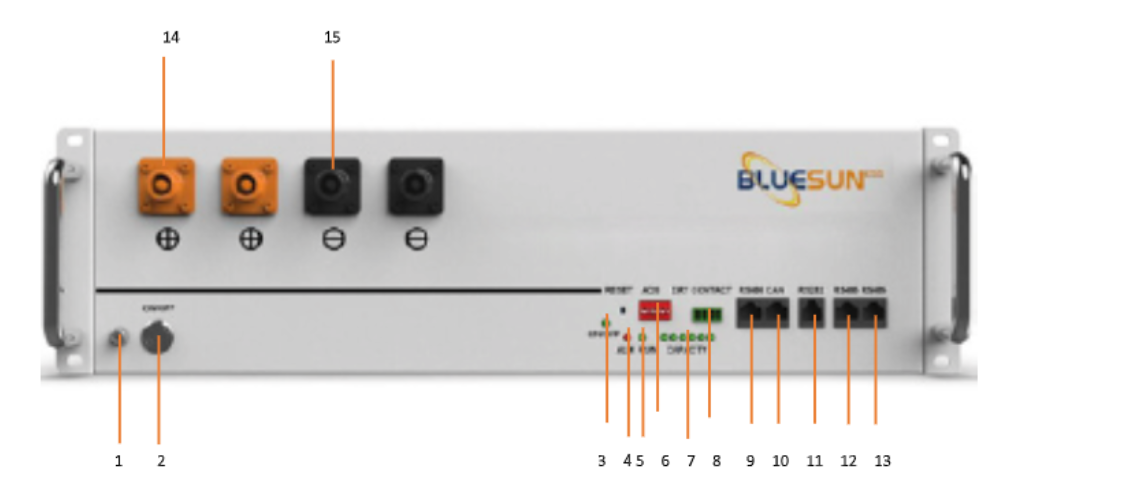

| Item | Name | Definition |
| 1 | Power switch | OFF/ON, must be in the “ON” state when in use |
| 2 | Positive socket | Battery output positive or parallel positive line |
| 3 | ADD | DlP switch |
| 4 | SW (batterywake/sleepswitch) | When the “OFF/ON” switch button is in the ON state, pressand hold this button for 3 seconds to put the battery into thepower-on or off state |
| 5 | SOC | The number of green lights shows the remaining power. |
| 6 | ALM | Red light flashing when an alarm occurs, red light always onduring protection status. After the condition of triggerprotection is relieved, it can be automatically closed |
| 7 | RUN | Green light flashing during standby and charging mode. Green light always on when discharging. |
| 8 | COM | Communication cascade port, support RS232 |
| 9 | CAN/485 | Communication cascade port, support CAN/RS485communication (factory default CAN communication) |
| 10 | DRY CONTACT | / |
| 11 | Negative socket | Battery output negative or parallel negative line |
| 12 | Grounding | Shell ground connection |
