50kw 60kw Grid Tied Solar Solutions
This all-in-one system includes premium solar panels, reliable grid-connected photovoltaic inverters, and sturdy photovoltaic mounting brackets, ensuring long-lasting performance and adaptability. Its streamlined structural design allows for seamless installation on both rooftops and ground surfaces, making it an ideal solution for a variety of applications.
Model No. :BSM50-60K-ON
Max.Power:60KW
Certificate: CE/TUV
Warranty:25 years
Monitoring:WiFi
Mounting Structure:Roof/Ground Customized

Products Description

50-60kw on grid solar solutions

The 50kW 60kW Grid Tied Solar Solutions offer a comprehensive and efficient approach to harnessing solar energy. This all-in-one system includes premium solar panels, reliable grid-connected photovoltaic inverters, and sturdy photovoltaic mounting brackets, ensuring long-lasting performance and adaptability. Its streamlined structural design allows for seamless installation on both rooftops and ground surfaces, making it an ideal solution for a variety of applications.

To further simplify the process, the system comes with a detailed circuit diagram and a user-friendly photovoltaic mounting bracket guide, enabling quick and hassle-free setup. Whether for residential or commercial use, the 50kW 60kW Grid Tied Solar Solutions deliver optimal performance, convenience, and clean energy efficiency.

System Configuration

ModelBSM50KW-ONBSM60KW-ON
Solar Panel 570W100pcs120pcs
Grid-tied InverterBSM50K-BBSM30K-B*2
Wi-Fi ModuleBuild-InBuild-In
Mounting System1 Set1 Set
DC Cable 4mm2400M*4MM2500M*4MM2
PV Connector30 Pairs40 Pairs
AC/DC BreakerOptOpt
PVTools Wire Cable Cutter &Stripper,Crimping Pliers for PV Connectors (Opt)

System Components

Solar Panel Choose

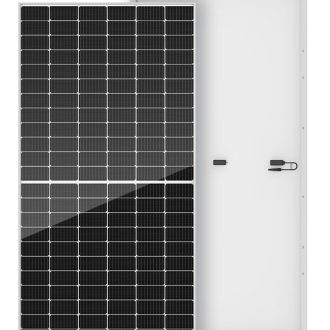

570w solar module

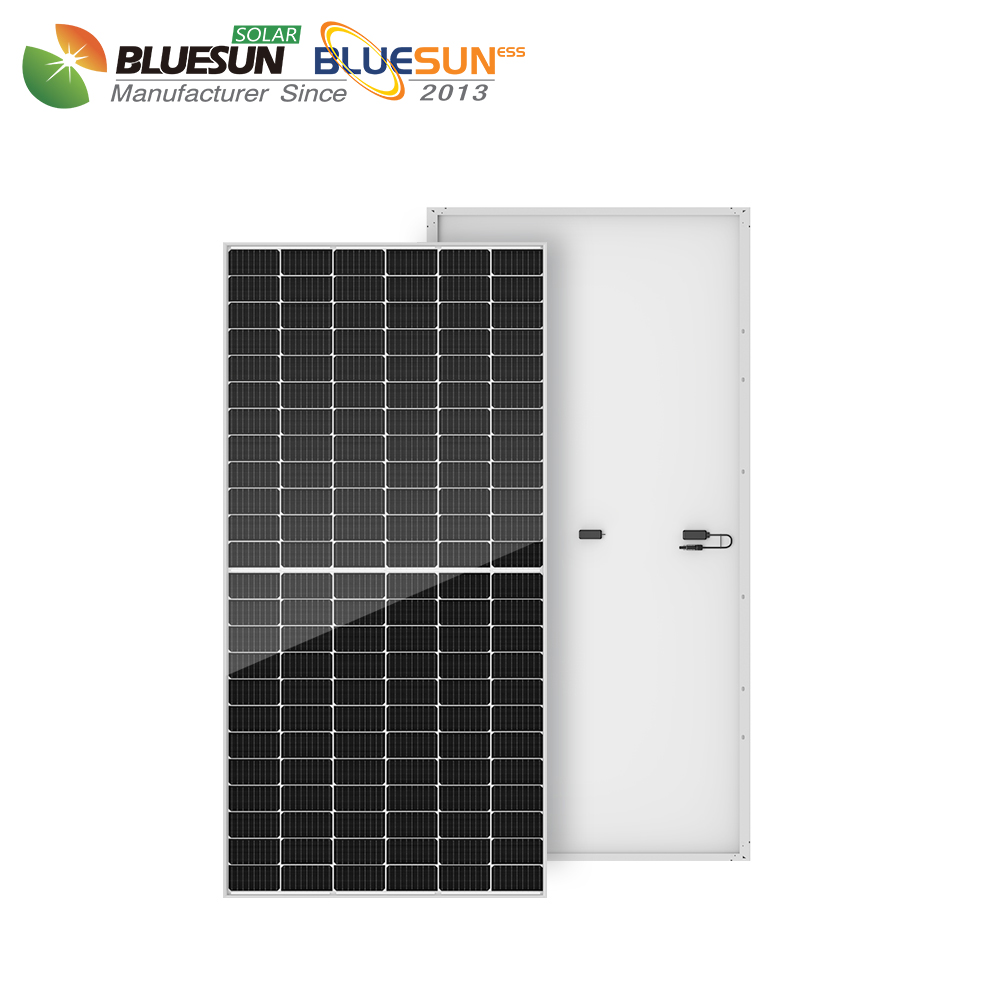

Bluesun PERC Mono 570W Solar Panel
Utilizing MBB half-cell technology
Maximum Power Voltage: 42.51V
Maximum Power Current: 13.41A
Open Circuit Voltage: 50.2V
Short Circuit Current: 14.34A
Dimensions: 2278×1134×35mm
Weight: 28.6kg

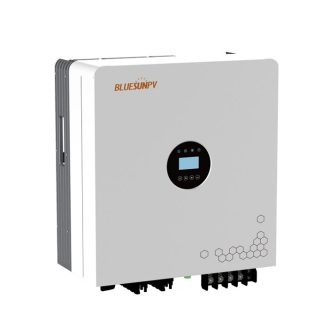

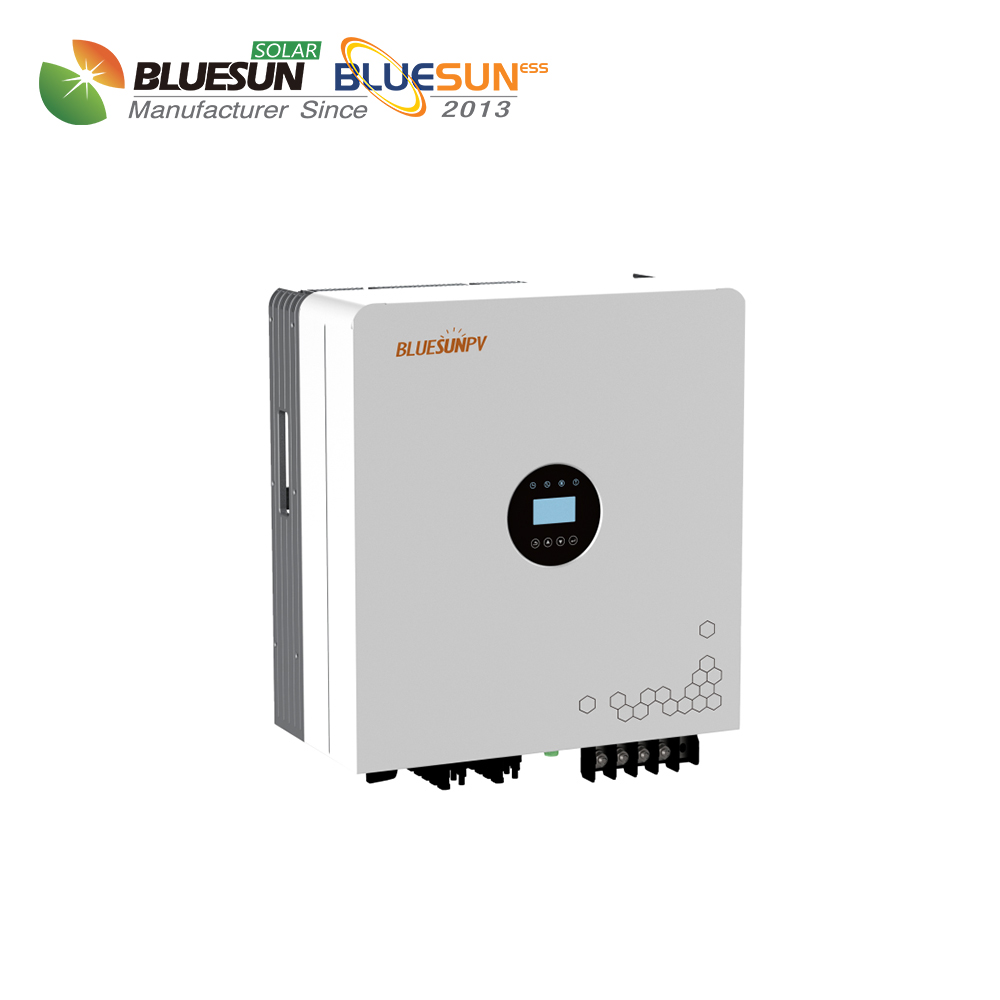

BSM30-50K-B On Grid Solar Inverter
High Efficiency:99% max efficiency, dual MPPT, and compatibility with 182/210 PV panels.
Reliable:Natural/smart cooling, voltage protection, and built-in lightning protection.
User-Friendly:Operates at 100% rated power under 45℃ with convenient app support.

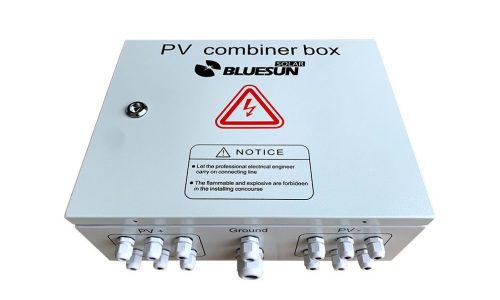

pv combiner box
 PV Combiner Box

Cross Section: 4mm2, 6mm2 Optional

Rated Voltage: 600VDC/1000VDC(TUV)

URated Current: 55A,70A

Colors: Black For STD, Red Optional.

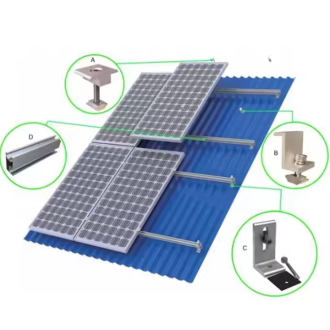

solar mounting system
 PV Mounting System

Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system

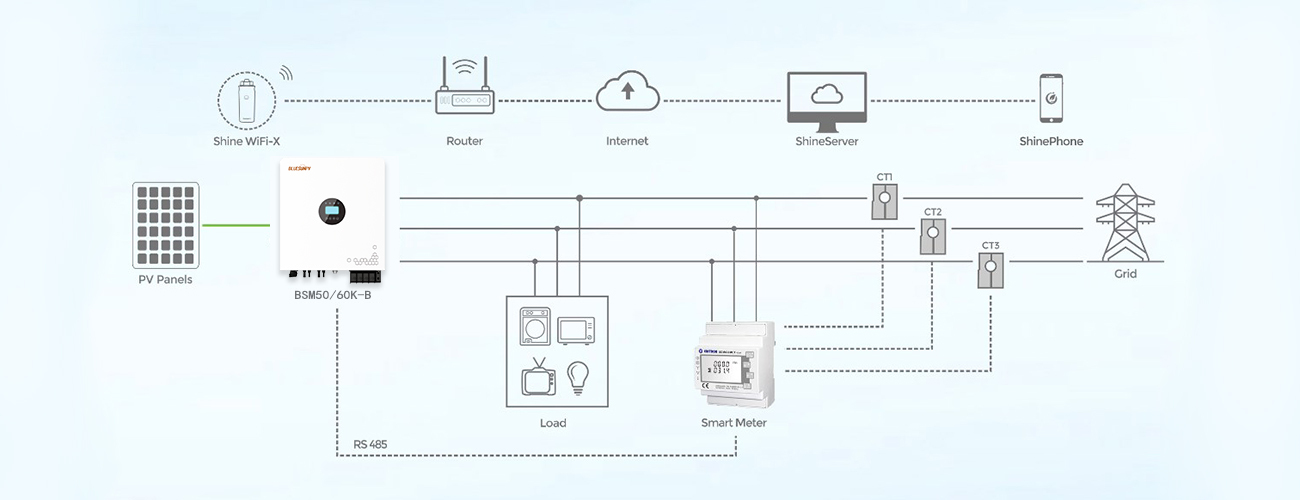

System Block Diagram

50-60kw on grid System Block Diagram
