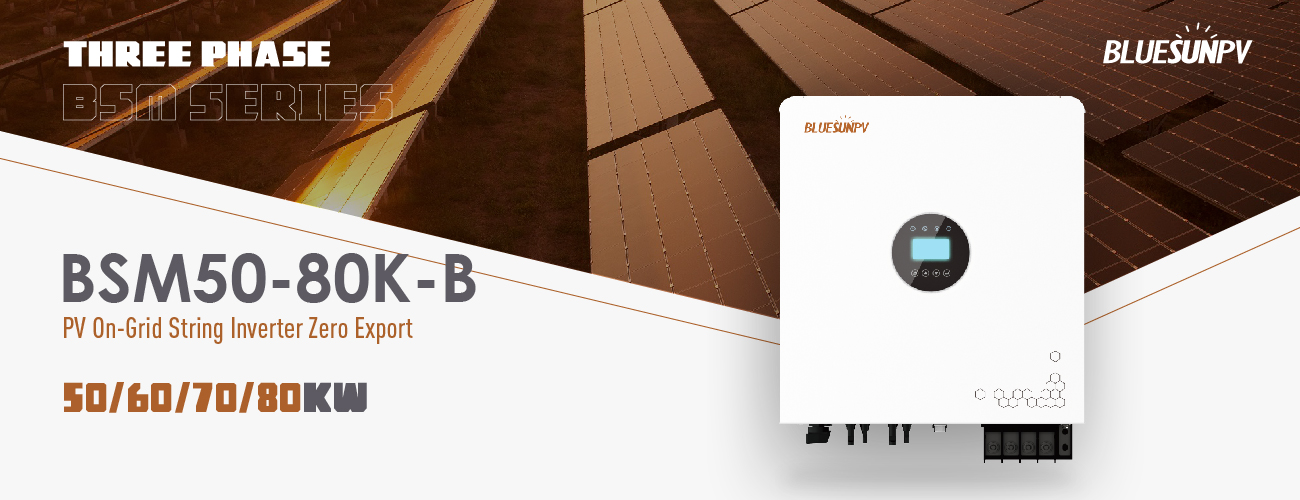

| Model: | BSM50-80K-B |
| Type: | PV On-Grid String Inverter |
| Max Power: | 80KW |
| Max. Efficiency: | 98.6% |
| Communication: | RS485/Wifi/4G |
| Warranty: | 5 Years(10 Years Option) |
| Certificate: | CE/TUV/EN50549/VDE4105/VDE0126 |
Bluesun three-phase on-grid inverter power range is from 3kW to 125kW with 230/400Vac. So, it can connect to utility grid(230/400V) directly without transformer. All the inverters are equipped with LCD display and buttons, easy operation and maintenance specially for remote and poor areas.
High Efficiency:
99% max efficiency, dual MPPT, and compatibility with 182/210 PV panels.
Reliable:
Natural/smart cooling, voltage protection, and built-in lightning protection.
User-Friendly:
Operates at 100% rated power under 45℃ with convenient app support.
PV Voltage Up To 1100v
Type II DC /AC SPD
DC/AC Ratio Up To 1.5
IP66 Protection
Reactive Power Control
WiFi / 4g Plug Optional
High Efciency Up To 98.6%
Smaller And Lighter
| Model | BSM50K-B | BSM60K-B | BSM70K-B | BSM80K-B | |
|
DC Input |
Max. DC Voltage | 1100V | |||
| Nominal Voltage | 620V | ||||
| Start Voltage | 180V | ||||
| MPPT Voltage Range | 200V-1000V | ||||
| Number of MPPT Tracker | 4 | ||||
| Strings Per MPPT Tracker | 2 | 2 | 3 | 3 | |
| Max. Input Current Per MPPT | 32A | 32A | 45A | 45A | |
| Max. Short-circuit Current Per MPPT | 48A | 48A | 60A | 60A | |
|
AC Output |
Nominal AC Output Power | 50000W | 60000W | 70000W | 80000W |
| Max. AC Output Power | 55000VA | 66000VA | 77000VA | 88000VA | |
| Nominal AC Voltage | 400V 3L+N+PE | ||||
| AC Grid Frequency Range | 50 / 60Hz(±5Hz) | ||||
| Max. Output Current | 79.7A | 95.6A | 111.6A | 127.5A | |
| Power Factor(Φ) | 0.8leading-0.8lagging | ||||
| THDi | 3% | ||||
|
Efficiency |
Max.Efficiency | 98.5% | 98.5% | 98.6% | 98.6% |
| European Effciency | 98.2% | 98.2% | 98.3% | 98.3% | |
|
Protection Devices |
DC Switch | Yes | |||
| Output Over Current | Yes | ||||
| Anti-islanding Protection | Yes | ||||
| DC Reverse Polarity Protection | Yes | ||||
| String Fault Detection | Yes | ||||
| DC/AC Surge Protection | Type II | ||||
| Insulation Detection | Yes | ||||
| AC Short Circuit Protection | Yes | ||||
|
General Specifications |
Dimensions W x H x D | 515×585x287mm | |||
| Weight | 51KG | 51KG | 55KG | 55KG | |
| Operating Temperature Range | –25°C~+60° | ||||
| Cooling Type | FAN Cooling | ||||
| Max. Operating Altitude | 4000m | ||||
| Max. Operating Humidity | 0-100%(No condensation) | ||||
| AC Output Terminal Type | Connector | ||||
| IP Class | IP66 | ||||
| Topology | Transformer-less | ||||
| Communication | RS485/Wi fi/4G | ||||
| Display | LCD | ||||
| Certi cation & Standard | EN/IEC62109-1/2; IEC/EN61000-6-2; IEC/EN61000-6-4; IEC61683; IEC60068; IEC60529; IEC62116; IEC61727; EN50549-1; AS 4777.2; VDE-AR-N-4105; VDE 0126-1-1; CEI0-21; G98; G99; C10/C11; NB/T32004-2018; GB/T19964-2012 | ||||
